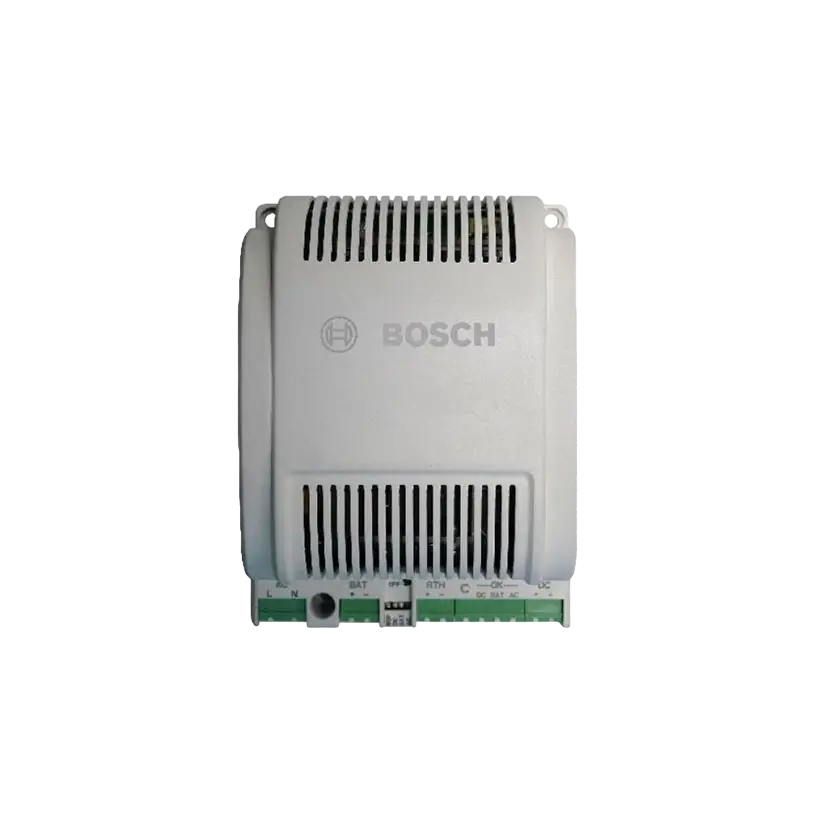

APS-PSU-60
Características
- Supports 12 V/7 Ah, 12 V/14 Ah and 24 V/7 Ah batteries
- Selectable 12 VDC or 24 VDC voltage output
- Selectable 5 A @ 12 VDC or 2.5 A @ 24 VDC current output
- Overvoltage protection
- Regulates battery charging voltage
Downloads
| Output voltage: | 12V mode 24V mode , 10-15V 20-30V |
| Output current: | 12V mode 24V mode , max 5A max. 2.5A |
| Output power: | 60 W (constant) |
| Over voltage protection at: | 12V mode 24V mode , 16.5V 33V |
| Input voltage: | AC 100-240V~, 50-60Hz |
| Input current (AC): | Max. 2A, to the specified max. load at 85 VAC |
| Input protection in case of a failure, the primary voltage is cut off from the power supply by a fuse. | |
| Output voltage: | 12V mode 24V mode , 10-15V 20-30V |
| Output current for charging the battery: | 12V mode 24V mode , 700mA * 350mA † |
| * according to battery capacity 14Ah† according to battery capacity 7Ah | |
| Periodic battery checks – approx. every 5 minutes. | |
| Protection from total battery discharge: | 12V mode 24V mode , 9.5V 19V |
